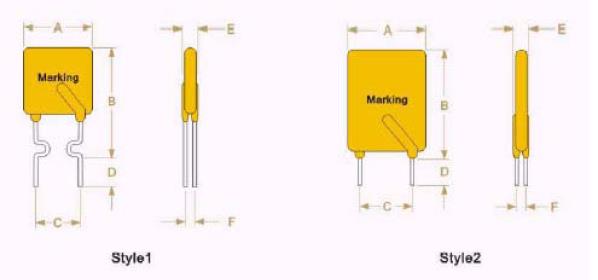

■产品尺寸(mm)
型号 | A (最大值) | B (最大值) | C (典型值) | D (最小值) | E (最大值) | F (典型值) | 引脚 | |
形式 | 尺寸(φ) | |||||||
LP33-090F | 6.0 | 13.8 | 5.1 | 7.6 | 3.0 | 0.9 | 1 | 0.6 |
LP33-110F | 7.8 | 14.0 | 5.1 | 7.6 | 3.0 | 0.9 | 1 | 0.6 |
LP33-120F | 7.4 | 12.2 | 5.1 | 7.6 | 3.0 | 0.9 | 1 | 0.6 |
LP33-135F | 7.4 | 14.2 | 5.1 | 7.6 | 3.0 | 0.9 | 1 | 0.6 |
LP33-160F | 9.7 | 17.0 | 5.1 | 7.6 | 3.0 | 0.9 | 1 | 0.6 |
LP33-185F | 10.7 | 17.0 | 5.1 | 7.6 | 3.0 | 0.9 | 1 | 0.6 |
LP33-190F | 8.9 | 13.5 | 5.1 | 7.6 | 3.0 | 0.9 | 1 | 0.6 |
LP33-250F | 11.7 | 19.0 | 5.1 | 7.6 | 3.0 | 0.9 | 1 | 0.6 |
LP33-300F | 11.7 | 21.0 | 5.1 | 7.6 | 3.0 | 1.2 | 2 | 0.8 |
LP33-400F | 14.2 | 23.0 | 5.1 | 7.6 | 3.0 | 1.2 | 2 | 0.8 |
LP33-500F | 14.4 | 28.0 | 10.2 | 7.6 | 3.0 | 1.2 | 2 | 0.8 |
LP33-600F | 16.7 | 28.0 | 10.2 | 7.6 | 3.0 | 1.2 | 2 | 0.8 |
LP33-700F | 19.4 | 29.6 | 10.2 | 7.6 | 3.0 | 1.2 | 2 | 0.8 |
LP33-800F | 21.6 | 31.9 | 10.2 | 7.6 | 3.0 | 1.2 | 2 | 0.8 |
LP33-900F | 24.5 | 36.4 | 10.2 | 7.6 | 3.0 | 1.2 | 2 | 0.8 |
■电性能参数
型号 | IH (A) | IT (A) | 动作时间(秒) | Vmax (V) | Imax (A) | PDtyp (W) | Rmin (Ω) | Rmax (Ω) |
LP33-090F | 0.9 | 1.8 | 7.1 | 33 | 40 | 0.91 | 0.08 | 0.17 |
LP33-110F | 1.1 | 2.2 | 6.6 | 33 | 40 | 1.00 | 0.07 | 0.152 |
LP33-120F | 1.2 | 2.3 | 3.5 | 33 | 40 | 0.78 | 0.06 | 0.14 |
LP33-135F | 1.35 | 2.5 | 4.5 | 33 | 40 | 0.84 | 0.06 | 0.13 |
LP33-160F | 1.6 | 3.2 | 8.0 | 33 | 40 | 1.20 | 0.045 | 0.1 |
LP33-185F | 1.85 | 3.7 | 8.7 | 33 | 40 | 1.27 | 0.03 | 0.06 |
LP33-190F | 1.9 | 3.0 | 3.5 | 33 | 40 | 0.9 | 0.03 | 0.06 |
LP33-250F | 2.5 | 5.0 | 10.3 | 33 | 40 | 1.34 | 0.02 | 0.05 |
LP33-300F | 3.0 | 6.0 | 10.8 | 33 | 40 | 2.00 | 0.02 | 0.045 |
LP33-400F | 4.0 | 8.0 | 12.7 | 33 | 40 | 2.50 | 0.01 | 0.04 |
LP33-500F | 5.0 | 10.0 | 14.5 | 33 | 40 | 3.00 | 0.01 | 0.03 |
LP33-600F | 6.0 | 12.0 | 16.0 | 33 | 40 | 3.50 | 0.005 | 0.03 |
LP33-700F | 7.0 | 14.0 | 17.5 | 33 | 40 | 3.80 | 0.005 | 0.025 |
LP33-800F | 8.0 | 16.0 | 18.8 | 33 | 40 | 4.00 | 0.005 | 0.025 |
LP33-900F | 9.0 | 18.0 | 20.0 | 33 | 40 | 4.20 | 0.005 | 0.015 |
IH:25℃静止空气中不触发自复保险丝PTC电阻突变的最大电流.
IT: 25℃静止空气中自复保险丝PTC从低阻转为高阻的最低电流.
Vmax: 自复保险丝PTC能承受的最大工作电压
Imax: 自复保险丝PTC在最大电压下所能承受的最大电流.
PDtyp: 在25℃静止空气环境下，PTC动作后的功率损耗总值
Rmin: 在25℃静止空气环境下，PTC动作之前的最小电阻值。
Rmax：在25℃静止空气环境下，PTC动作之前的最大电阻值。
